Combined system specifications
- All NanoTracker™, NanoWizard®/CellHesion® 200 systems can be combined to become a complete OT-AFM-platform
- The ConnectorStage™ can combine the AFM with the tweezers hardware on all major inverted optical microscopes from Zeiss, Olympus, Nikon, Leica
- Two separate controllers drive the two systems independently
- NanoWizard® AFM controller with software
- NanoTracker™ OT controller with software
- Compatible with different sample holders and stages for every application
- Motorized precision stage for sample positioning
- Manual precision stage for sample positioning
- TAO™ module with 2 or 3 axis for sample positioning or scanning
- Compatible with different coverslip sample holders
- BioCell™ with perfusion and heating/cooling
- PetriDishHeater™ for standard Petri dishes with perfusionand heating capabilities
- CoverslipHolder with perfusion
- Transmission illumination with a standard condenser for brightfield or DIC
- Simultaneous fluorescence imaging (epifluorescence, TIRF, confocal)
- Real-time position/force detection in the optical trap via particle tracking in the live video image
- User-programmable software
- Powerful Data Processing (DP) functions with full functionality for data export, fitting, filtering, edge detection, 3D rendering, FFT, cross section, etc.

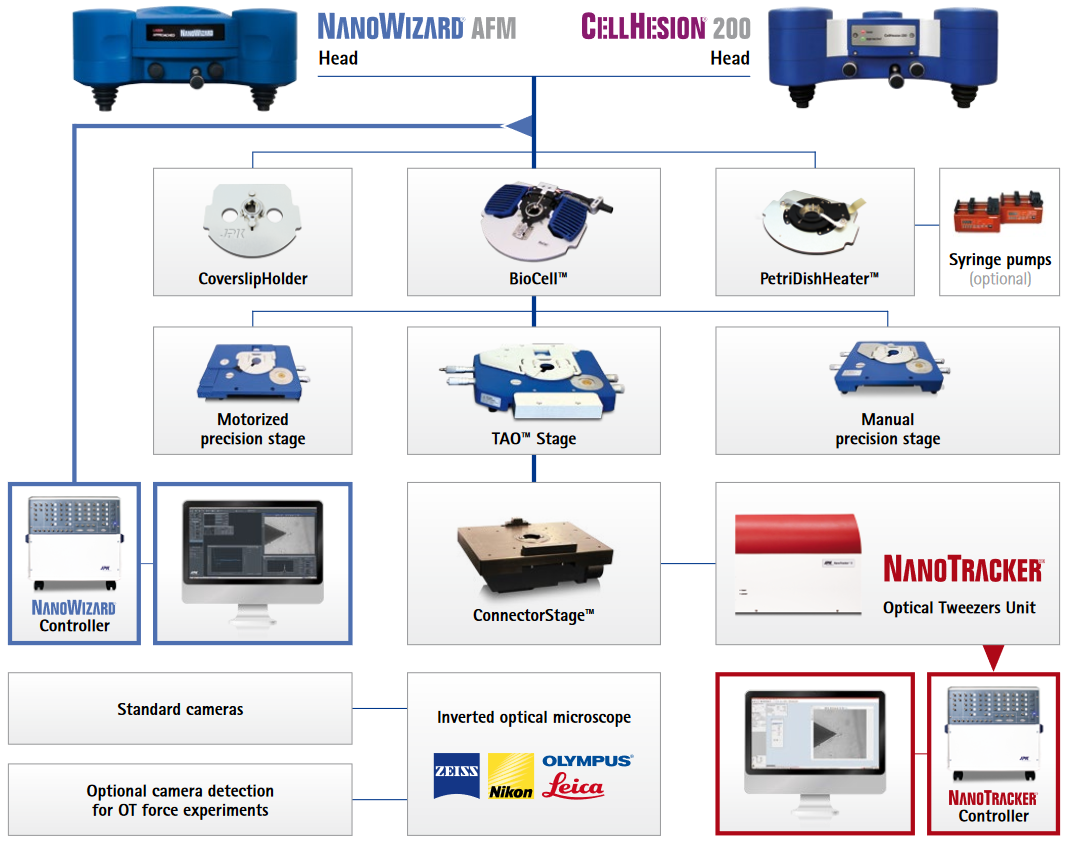

System components & accessories
The system is compatible with various JPK stages and sample holders for environmental control:
NanoWizard® AFM
AFM specifications for combined system
- Tip-scanning system for undisturbed optical integration
- High-resolution and low noise system forimaging and force measurements
- High performance sample property mapping with JPKs unique QI™ mode
- Liquid-safe scan head technology perfect for live cell measurements
- Unique design for transmission illumination with standard condensers
For details see NanoWizard® brochure.
NanoTracker™ 2
OT specifications for combined system
- Ultra-stable, custom designed laser with 3W, 5W or 10 W output, continuous power adjustment
- Single beam or dual beam configuration
- AOD option for fast scanning and up to 250 traps with multiplexing
- 3D trap positioning
- Modular design provides flexible hardware upgrade paths
For details see NanoTracker™ 2 brochure.
